  • Stock: In Stock
  • Model: Y92.4V 3A 22S Lithium Charger
  • Weight: 1.90
  • SKU: Y92.4V 3A 22S Lithium Charger
$98.00

92.4V  81.4V  79.2V  22S  3A  Lithium ion Battery Charger CC/CV Mode with Wall Socket


Charger Sepc.
1>   Auto stop when battery is fully charged.
2>   Universal: 110~240V   50~60Hz
3>   Built-in Cooling Fan
4>   Output: 92.4V
5>   Charging Current: 3A (constant current process)
6>   Power: 360W
7>   Weight: 1.2Kg,  Dimension: 63*90*180mm
8>  Charger Shell Material: High Quality Aluminum Case
9>  Application: for 22S  92.4V  Li-ion  LiPO Electronic-Bike / Electronic-Scooter Battery Packs.

  •
Charging method
1>   Connected to Outlets, LED1 Turns to Red (Power), LED2 is Green
2>   Connecting Battery Pack, LED2 Turns Red (is Charging)
3>   LED2 Turns Green by Fully Charged.


Charge for Lithium Battery
> 79.2V  (3.6V * 22S)  Lithium battery
> 81.4V  (3.7V * 22S)  Lthium battery
> 92.4V  (4.2V * 22S)  Lithium battery
> For 22S  Li-ion / Li-Polymer Battery Packs


Optional Wall Socket

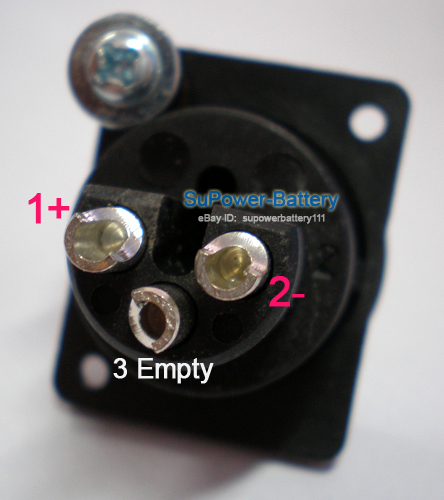

Plugs-1



With Plug base that could connect charger with battery pack.
Could use solder iron to solder the wires on pins.
1 for positive 2 for negative / 3 for empty

P4060002

Packing include:
1x  92.4V  3A  Lithium Charger with Wall Socket Power Cord
1x  Charger Plug Base
1x  Back-up Fuse
1x  English User Manual


Wholesale Welcome!
Customized Charger Spec. is acceptable for small orders !
